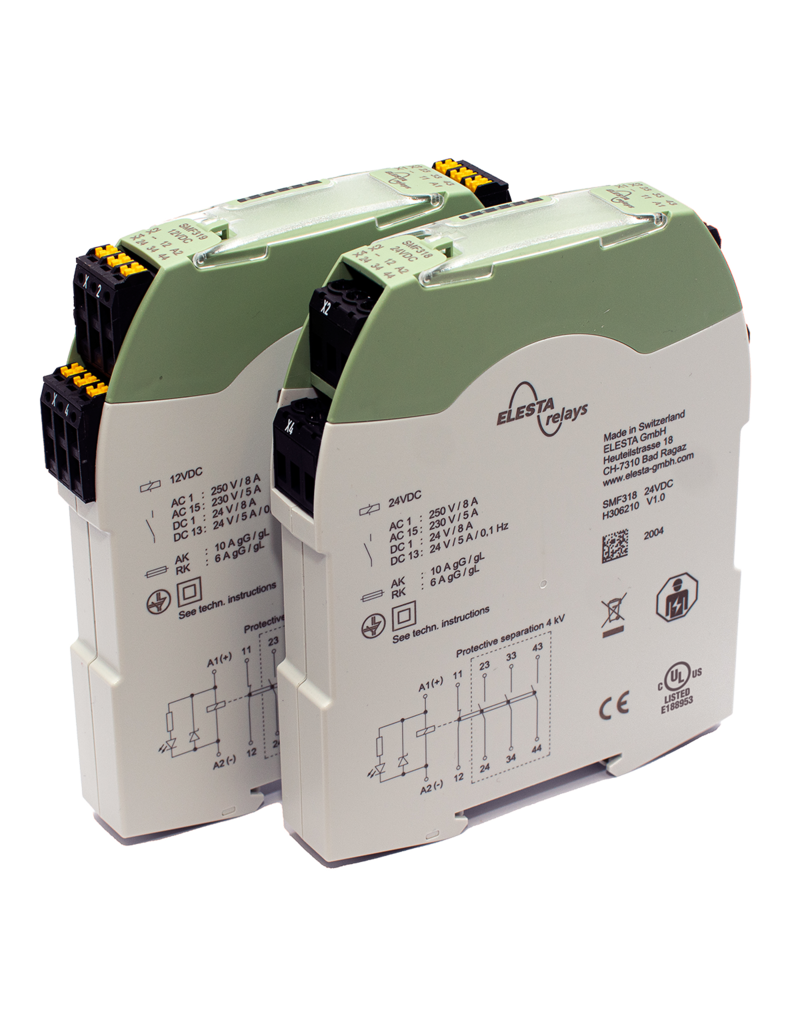

SMF 4 series - SMF228/SMF229

Relay module with 4-pole relay with forcibly guided contacts according to IEC 61810-3, application type A for mounting on 35 mm rail. With notched-crown contacts for switching currents from 3 mA to 8 A ideally suited for both monitoring circuits and load circuits.
Simplified installation due to plug-in terminals with screw and push-in technology.
Display of the control and protective circuitry are already an integral part of the module. Shortest possible release times of the switching contact are guaranteed by the use of a TVS diode.

Switching current: 3mA - 8A
Test voltage (rms): 4000V

Download datasheet

The following product variants are available:

  • SMF228 12 VDC (Screw terminals) Article number: H306702
  • SMF229 12 VDC (Spring terminals) Article number: H306703
  • SMF228 24 VDC (Screw terminals) Article number: H306392
  • SMF229 24 VDC (Spring terminals) Article number: H306542

Other relay coil variants on request.

Maximum one packing unit available, contains 24 pieces.

Number of Contacts NO: 2
Number of Contacts NC: 2
Contact Material: AgCuNi + 0,2 ... 0,4 μm Au
Contact Type (Output Contacts): Single contact with notched crown
Switching Current Range: 3 mA ... 8 A
Test Voltage open Contact (rms): 1500 Vrms / 1 min
Length in mm: 100
Width in mm: 17,5
Height in mm: 120
Type of Protection: IP20
Approvals: cULus
Areas of Application: Access control, interfaces, elevators, escalators, transportation, robots, machine tools and railway applications
