SIM 3 Series - SIM212 KV2

  • Relay with forcibly guided contacts according to IEC 61810-3
  • Application type A
  • Protective separation (see insulation data)
  • Suitable for print mounting
  • An alternative contact variant
  • Contact assembly:

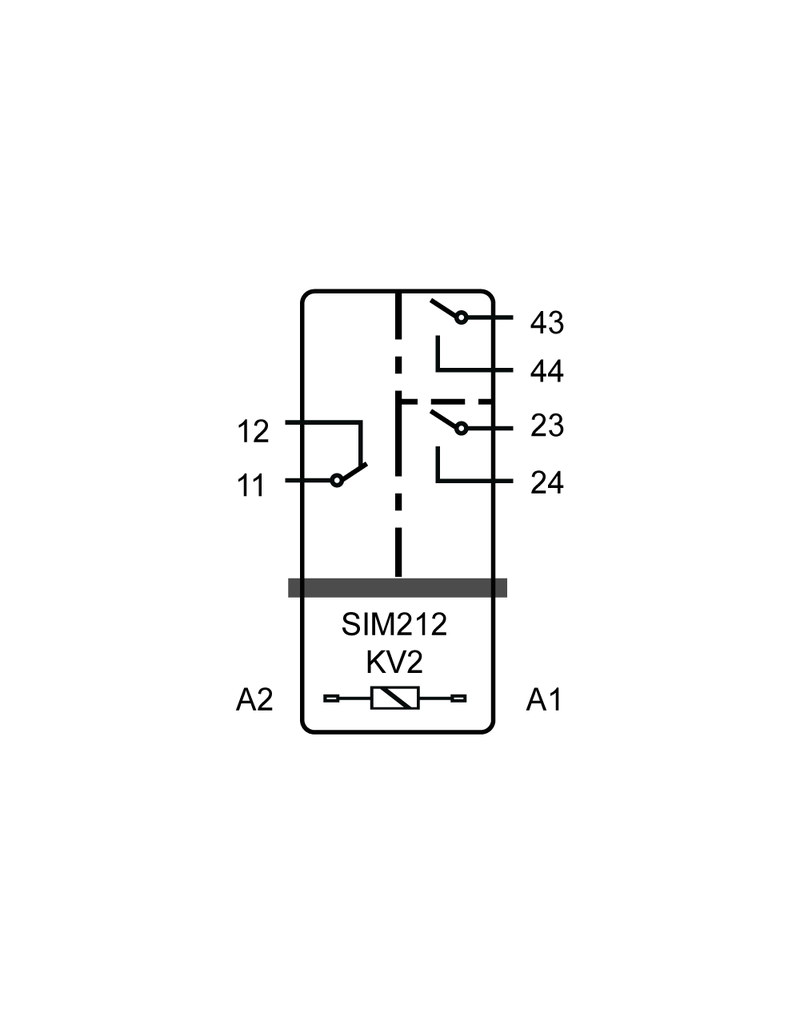

    • SIM212 KV2: 2 NO + 1 NC

Switching current: 10mA bis 8A
Nominal coil power: 750mW
Test voltage (rms): 4000V

Download datasheet

The following product variants are available:

  • Coil Voltage: 12 VDC Article number:
  • Coil Voltage: 24 VDC Article number: H301296

Other relay coil variants on request.

Maximum one packing unit available, contains 24 pieces.

Number of Contacts NO: 2
Number of Contacts NC: 1
Contact Material: AgSnO2
Contact Type (Output Contacts): Crown Contacts
Nominal Coil Power: 0.75 W
Switching Current Range: 10 mA to 8 A
Test Voltage open Contact (rms): 1500 V
Test Voltage between Contacts (rms): 2500 V, 4000 V ***
Test Voltage Coil/Contact (rms): 5000 V
Length in mm: 36.1
Width in mm: 12.5
Height in mm: 26,2
Type of Protection: RT II
Approvals: UL, cUL, TÜV
Options, Accessories: Print socket, DIN-rail socket
Areas of Application: process technology, mining, lifting technology, interfaces, remote control
*** between left and right contact side
Download datasheet
0 stars based on 0 reviews
Delivery time: will be announced with order
