Switching current: 10mA - 8A
Nominal coil power: 750mW
Test voltage (rms): 4000V
Switching current: 10mA - 8A
Nominal coil power: 500mW
Test voltage (rms): 4000V
The following product variants are available:
Other relay coil variants on request.
Maximum one packing unit available, contains 24 pieces.

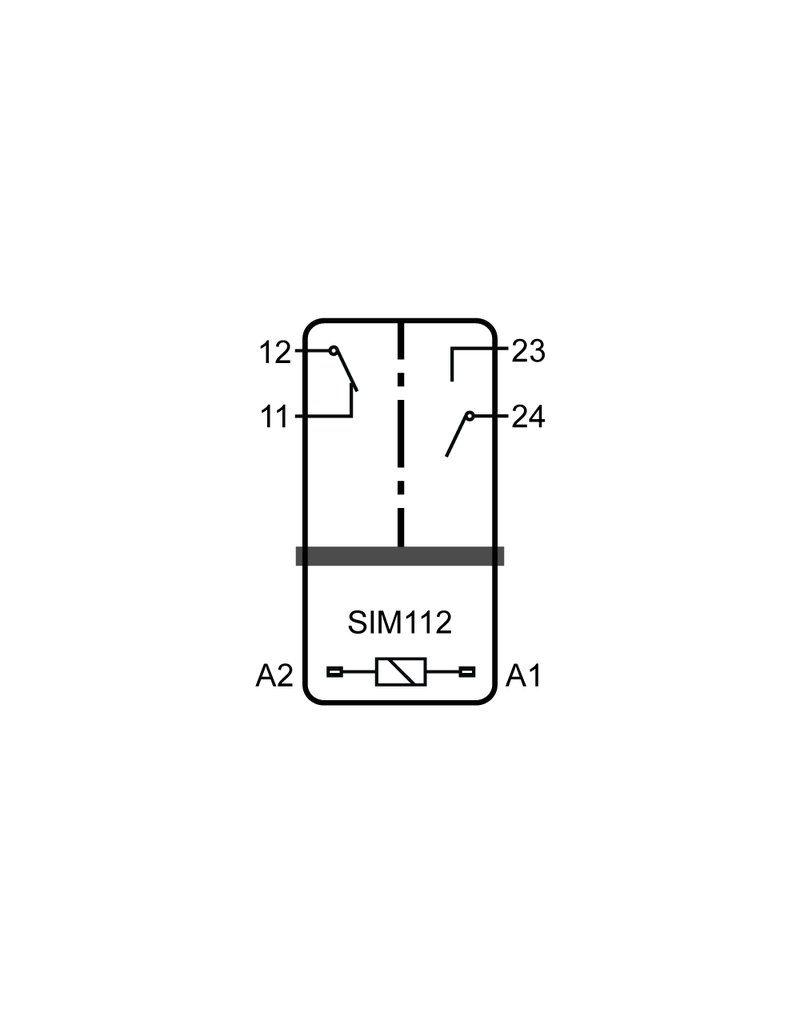

| Number of Contacts NO: | 1 |
| Number of Contacts NC: | 1 |
| Contact Material: | AgSnO2 |
| Contact Type (Output Contacts): | Crown Contacts |
| Nominal Coil Power: | 0.5 W |
| Switching Current Range: | 10 mA to 8 A |
| Test Voltage open Contact (rms): | 1500 V |
| Test Voltage between Contacts (rms): | 4000 V |
| Test Voltage Coil/Contact (rms): | 5000 V |
| Length in mm: | 27.4 |
| Width in mm: | 12.5 |
| Height in mm: | 26.2 |
| Type of Protection: | RT II |
| Approvals: | UL, cUL, TÜV |
| Options, Accessories: | none available |
| Areas of Application: | process technology, mining, lifting technology, interfaces, remote control |
