Switching current: 4mA - 8A
Nominal coil power: 700mW
Test voltage (rms): 4000V

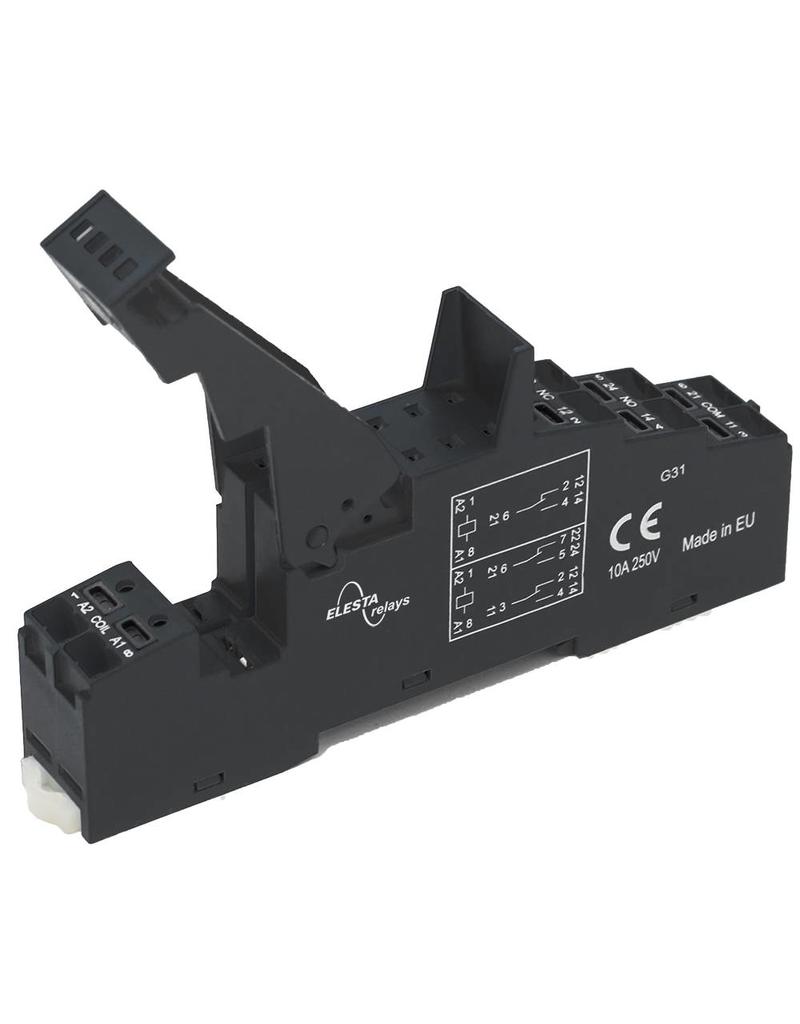

DIN rail socket with protective separation for relays of the SGR 282 ZK series.
Socket with push-in contacts
Test voltage coil/contacts 5000 VAC
With plastic retaining clip and label (1 piece)
35 mm DIN rail mounting or central mounting with M3 screw
Maximum one packing unit available, contains 20 pieces.
|Nominal Current:||2 x 8 A|
|Nominal Voltage:||250 VAC|
|Test Voltage Coil/Contact:||5000 Vrms|
|Insulation class IEC 60664-1:||250 VAC|
