SMF5 series - SMF418/SMF419

  • Relay module with 6-pole relay with forcibly guided contacts according to IEC 61810-3
  • Application type A
  • Protective separation (see insulation data)
  • Integration in safety applications according to IEC/EN 62061, ISO/EN 13849 possible (User is responsible for correct integration!)
  • Mounting on 35 mm mounting rail (IEC 60715)
  • Switching current max. 8 A
  • Switching voltage: 250 V AC/DC
  • Power consumption: 0,67 ... 1,2 W
  • Overvoltage protection in the control unit
  • With spring terminals (SMF419)
  • With screw terminals (SMF418)

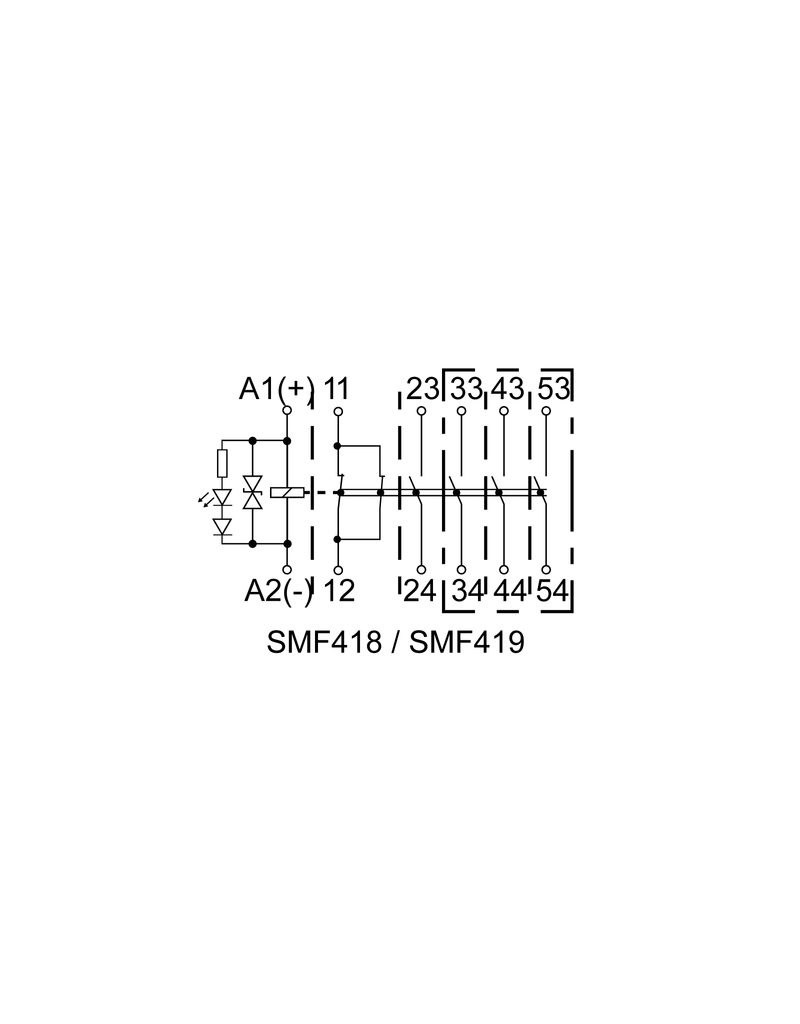

  • Contact assembly SMF418/419: 4 NO + 1 NC

Switching current: 3mA - 8A
Test voltage (rms): 4000V

Download datasheet

The following product variants are available:

  • SMF418 12 VDC (Screw terminals) Article number: H306738
  • SMF418 24 VDC (Screw terminals) Article number: H306740
  • SMF419 12 VDC (Spring terminals) Article number: H306739
  • SMF319 24 VDC (Spring terminals) Article number: H306741

Other relay coil variants on request.

Maximum one packing unit available, contains 24 pieces.

Number of Contacts NO: 4
Number of Contacts NC: 1
Contact Material: AgCuNi + 0,2 ... 0,4 μm Au
Contact Type (Output Contacts): Single contact with notched crown
Switching Current Range: 3 mA ... 8 A
Test Voltage open Contact (rms): 1500 Vrms / 1 min
Length in mm: 100
Width in mm: 17,5
Height in mm: 120
Type of Protection: IP20
Approvals: cULus
Areas of Application: Access control, interfaces, elevators, escalators, transportation, robots, machine tools and railway applications
Download datasheet
0 stars based on 0 reviews
Article number: H306738
Delivery time: within 5 working days
