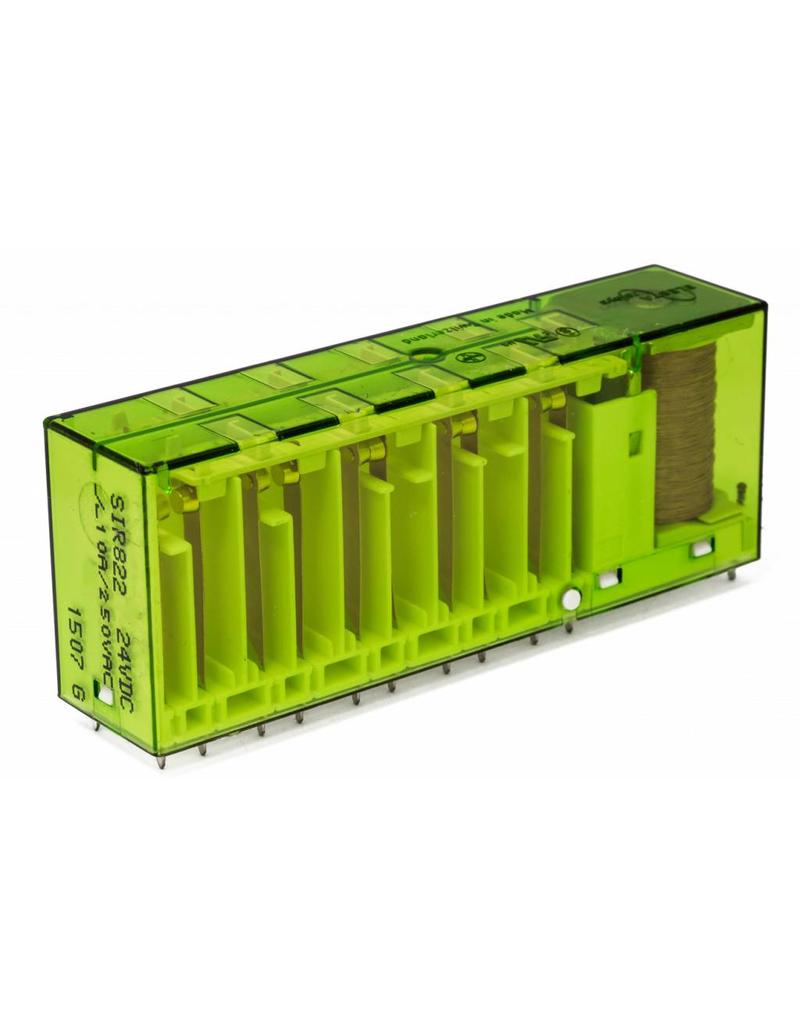

SIR10 Series - SIR822

  • Relay with forcibly guided contacts according to IEC 61810-3
  • Application type A
  • Protective separation (see insulation data)
  • Suitable for print mounting
  • Contact assembly
    • SIR822: 8 NO + 2 NC

Switching current: 10mA - 10A
Nominal coil power: 1300mW
Test voltage (rms): 4000V

Download datasheet

The following product variants are available:

  • Coil Voltage: 12 VDC Article number: H300241
  • Coil Voltage: 24 VDC Article number: H300194

Other relay coil variants on request.

Maximum one packing unit available, contains 7 pieces.

Number of Contacts NO: 8
Number of Contacts NC: 2
Contact Material: AgSnO2
Contact Type (Output Contacts): Crown Contacts
Nominal Coil Power: 1.3 W
Switching Current Range: 10 mA to 10 A
Test Voltage open Contact (rms): 1500 V
Test Voltage between Contacts (rms): 4000 V
Test Voltage Coil/Contact (rms): 2500 V
Length in mm: 85.5
Width in mm: 20
Height in mm: 32
Type of Protection: RT II
Approvals: UL, cUL, TÜV
Options, Accessories: none available
Areas of Application: lifts, machine tools, construction machinery, transportation, robotics
Download datasheet
0 stars based on 0 reviews
Article number: H300241
Delivery time: will be announced with order
